| Tên thương hiệu: | LDSK |
| Số mô hình: | LDk-C06 |
| MOQ: | 1 |
| Thời gian giao hàng: | 7 ngày làm việc |
| Điều khoản thanh toán: | T/T,L/C,D/A,D/P,Western Union,Paypal,Alibaba |
The LDK-C06 portable UAV monitoring system integrates wideband RF signal detection with navigation signal simulation technology in a single compact platform.
Designed for mobility and rapid deployment, the system enables operators to monitor UAV communication signals across a wide frequency range while providing additional navigation signal simulation capability for controlled operational scenarios.

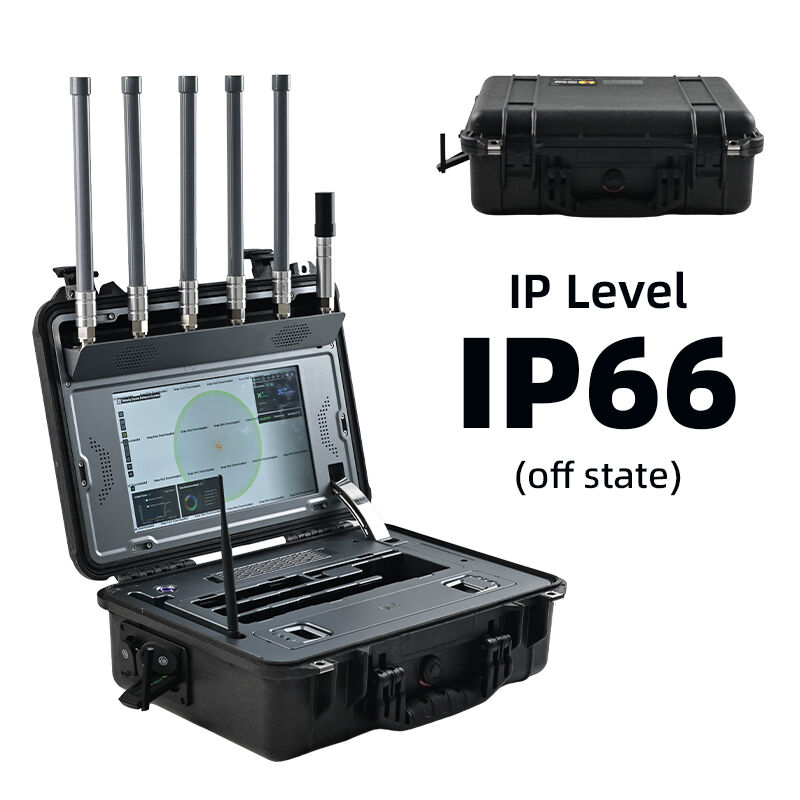

Its rugged design, integrated touchscreen interface, and detachable battery system make it suitable for outdoor deployment and temporary installations where reliable monitoring is required.
Full-Spectrum Monitoring
Wideband signal coverage from 100MHz to 6GHz for comprehensive UAV signal detection.
Portable Integrated Design
All-in-one system with foldable antennas and compact structure.
Multi-Constellation GNSS Simulation
Supports GPS, GLONASS and BeiDou navigation signal simulation.
Advanced UAV Signal Recognition
Identifies signals from multiple UAV brands and transmission protocols.
Rapid Deployment Capability
Quick setup and operation by a single operator.
Durable Field Operation
Industrial-grade enclosure with IP66 protection level when powered off.
| Item | Specification |
|---|---|
| Detection Frequency Range | 100MHz – 6GHz |
| Maximum Detection Distance | Up to 5 km |
| Navigation Signal Bands | GPS L1 / GLONASS L1 / BDS B1 |
| Simulation Coverage | Up to 1 km |
| Dimensions (Folded) | 470 × 357 × 176 mm |
| Dimensions (Deployed) | 470 × 472 × 690 mm |
| Weight | ≤14 kg |
| Battery | 28.8V Lithium Battery |
| External Power | AC110-240V |
| Protection Rating | IP66 (power-off state) |
FAQ
Q1: What environments is the system suitable for?
The system can be deployed in aviation facilities, industrial areas, critical infrastructure sites, and temporary monitoring locations.
Q2: Does the system require complex installation?
No. The device is designed for rapid deployment and can be operated by a single person.
Q3: What UAV types can be detected?
The system supports detection of commercial drones, Wi-Fi drones, FPV transmission drones, and other UAV communication signals.
Q4: How is the system powered during field operations?
It can operate using the built-in lithium battery or external AC power.
Q5: Can the system be integrated with other monitoring platforms?
Integration options can be customized depending on project requirements.
