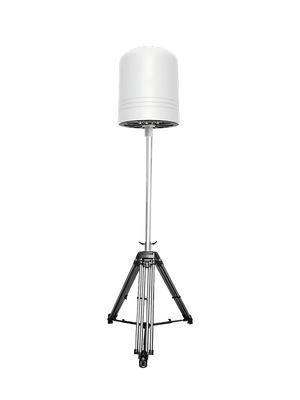

Fixed Drone Detector with 360° Passive Detection 24/7 Operation and Multi Station Networking for UAV Spectrum Monitoring
| Nguồn gốc | Quảng Đông, Trung Quốc |
|---|---|
| Hàng hiệu | LDSK |
| Số lượng đặt hàng tối thiểu | 1 mảnh |
| Giá bán | $23500-$27000 |
| chi tiết đóng gói | 590mm (L) × 490mm (W) × 270mm (h) 20kg |
| Thời gian giao hàng | 5-7WorkDays |
| Điều khoản thanh toán | D/A, D/P, T/T, Liên minh phương Tây, Moneygram ， PayPal |
| Khả năng cung cấp | 500pc mỗi tháng |
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Mẫu số | LDSKXM | Chế độ làm việc | RF cảm nhận |
|---|---|---|---|
| Dải tần số phát hiện | 100 MHz ～ 6GHz | Chế độ phát hiện | Phát hiện thụ động 360 ° |
| Phạm vi | 1 ～ 10km | Mô -đun máy bay không người lái có thể được định vị | Multi Station Networkomh cam nhận ra định vị chính xác của TDOA Mukti, theo dõi quỹ đạo và các chức |
| Làm nổi bật | 360° Passive Detection Drone Detector,24/7 Operation UAV Spectrum Detector,Multi Station Networking Fixed Drone Detector |
||
Bạn có thể đánh dấu vào các sản phẩm bạn cần và liên lạc với chúng tôi trong bảng tin.
Mô tả sản phẩm
How to contact us?
Email: chrissy@ladaskytech.com
Phone/wechat/whatsapp: +86 13556865442
Product overview
Drone detection--LDSKXM
The UAV Detector is a portable UAV monitoring equipment in the form of a suitcase, interfrating software and hardware. Throgh in-depth analysis and data mining of UAV signals, this equipment can realize detection range, serial number, model, position,speed, height,altitude, take-off point,return point, and track of the drone within the range and real-time detection of mulyi-dimensional information such ad the polit’s position. It can be used as a stand-alone machine or connected to the Internert, can can be deployed in the seconds.
Performance parameter
| N.O. | Project | Parameter | Remarks |
|---|---|---|---|
| 1 | Detection frequency band | 100MHz～6GHz | |
| 2 | Detection distance | 1～10km | |
| 3 | Number of detection targets | ≥5 sorties | meanwhile |
| 4 | Detection mode | 360°Passive detection | |
| 8 | Positioning accuracy | ≤10m | |
| 11 | Number of positioning trajectories | ≥5 sorties | meanwhile |
| 13 | Drone module can be located | Multi station networkomh cam realize TDOA mukti-model precise positioning, trajectory tracking and other functions. | |
| 14 | Detecting and identifying drone models | Common brands of drones such as DJI, Autel, Fimi, Dahua, and Yuneec, as well as most domestically produced models such as walkthrough and WiFi machines on the market |
Product Technical Speficication
- Drone monitoring: Capable of obtaining information such as serial number, model, position (longitude, latitude, azimuth), speed, altitude, takeoff point, return point, trajectory, remote control position (longitude, latitude, azimuth), etc. of unmanned aerial vehicles within the monitoring range.
- Unique ID identification: Identify the unique serial number of the drone and confirm its unique identity information.
- UAV positioning: Positionable drone position information, real-time display of drone position (longitude and latitude), azimuth information, and distance information (the distance of the drone relative to the location of the device).
- Flying hand positioning: Positionable pilot position information, real-time display of pilot (remote control) position (longitude and latitude), azimuth information, distance information (the distance of the pilot relative to the position of the device).
- Multi target trajectory tracking: Capable of locating and tracking drone swarms, while displaying multiple drone flight trajectories.
- Black and White List: Distinguishable between cooperative and noncooperative drones, with no alarm provided by the device when detecting cooperative drones, and trust labeling for cooperative drones.
- Intrusion alarm: When the device detects a drone intrusion, it will issue an audible or visual alarm.
- Track playback: Support drone flight trajectory playback and assist security personnel in analyzing historical drone flight data.
- Detection record: The detection record list can preserve historical detection records, including multidimensional information such as drone serial number, model, frequency, etc.
- Data and information visualization analysis: Support UAV detection and flight data statistical analysis, which can be presented through thermal diagram, Line chart and other visual icons.
- Electronic map: Electronic map switching, including Gaode, Bing, Baidu, Google, etc.
- Multiunit network: The devices can be connected to the backend control platform through networking, and the multi unit network can meet the needs of large area coverage;
- Inspection and strike linkage: Capable of collaborating with countermeasures or deception devices to strike drones;
- Multiple device networking: The equipment can be networked with TDOA equipment to detect and locate drones, improving positioning accuracy and breadth.
Product Features
- All detection models: The system can identify and detect common brands of drones such as DJI, AUTEL, Dahua, and Haoxiang, as well as the vast majority of models on the market such as self-made traversing machines and WiFi machines.
- Long detection distance: In an open environment, some models can detect distances of over 10km.
- Passive detection: The device does not emit any electromagnetic signals, has no electromagnetic environmental pollution, and is environmentally friendly.
- Comprehensive protection: The equipment operates continuously day and night throughout the day (7 * 24 hours), 24 hours a day (suitable for complex electromagnetic environments and harsh weather environments), and provides comprehensive (360° detection of drone intrusion) security in the core area.
- Fixed installation: The equipment adopts a fixed structural design, which can be installed and used outdoors for a long time.
Customization
| Item | Logo | Frequency | Power | Packing |
|---|---|---|---|---|
| MOQ(PCS) | 1 | 1 | 1 | 1 |
Product Technical Speficication
| Quantity(PCS) | <10pcs | <50 | 50-100 | >1000 |
|---|---|---|---|---|
| Lead time(Days) | 7 | 15 | 15-20 | To be negotiated |
Company profile
Packing and Delivery
FAQ
1.Why Choose us?
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.
2.What is the process of placing an order?
First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.
3. How to contact us?
Email: chrissy@ladaskytech.com
Phone/wechat/whatsapp: +86 13556865442
