LDKW07 Lightweight Portable Drone Detector with High Sensitivity and Long Battery Life for UAV Detection

  • LDKW07 Lightweight Portable Drone Detector with High Sensitivity and Long Battery Life for UAV Detection
  • LDKW07 Lightweight Portable Drone Detector with High Sensitivity and Long Battery Life for UAV Detection
  • LDKW07 Lightweight Portable Drone Detector with High Sensitivity and Long Battery Life for UAV Detection
  • LDKW07 Lightweight Portable Drone Detector with High Sensitivity and Long Battery Life for UAV Detection
  • LDKW07 Lightweight Portable Drone Detector with High Sensitivity and Long Battery Life for UAV Detection
  • LDKW07 Lightweight Portable Drone Detector with High Sensitivity and Long Battery Life for UAV Detection
  • LDKW07 Lightweight Portable Drone Detector with High Sensitivity and Long Battery Life for UAV Detection
Nguồn gốc Quảng Đông, Trung Quốc
Hàng hiệu LDSK
Số mô hình LDSKWK02
Số lượng đặt hàng tối thiểu 1
Giá bán $400
chi tiết đóng gói Thùng carton
Thời gian giao hàng 1 ngày làm việc
Điều khoản thanh toán D/A, D/P, T/T, Liên minh phương Tây, Moneygram, PayPal
Khả năng cung cấp 5000pcs mỗi tháng

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Dải tần số phát hiện 300 MHz – 6200 MHz Bán kính phát hiện ≥ 1 km (điều kiện điển hình)
Thời gian phản hồi 3 ~ 5s Thời gian của sức chịu đựng 3 ~ 4h
Điểm nổi bật Thiết bị phát hiện máy bay không người lái 6000 MHz, thiết bị phát hiện máy bay không người lái có t Chế độ báo động Tai nghe, âm thanh và ánh sáng báo động
Dung lượng nhật ký cảnh báo ≥ 500 hồ sơ báo động Tuổi thọ pin ≥ 6 giờ (pin đơn)
Làm nổi bật

Lightweight Portable Drone Detector

,

High Sensitivity UAV Detector

,

Long Battery Life Drone Detector
Để lại lời nhắn
Mô tả sản phẩm

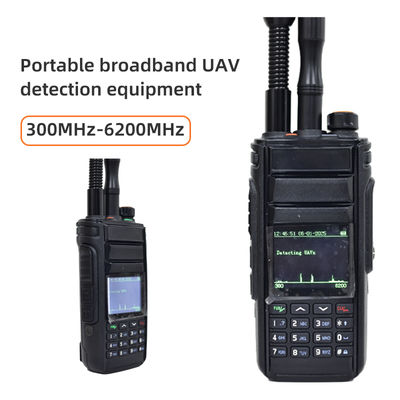

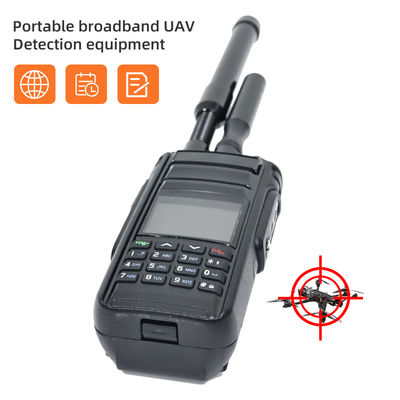

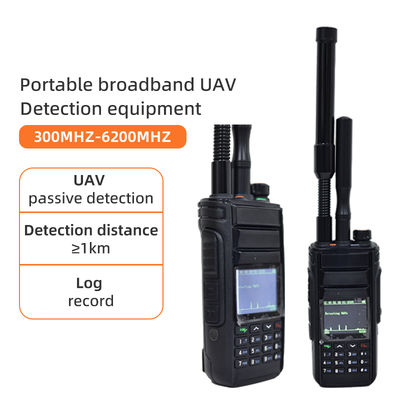

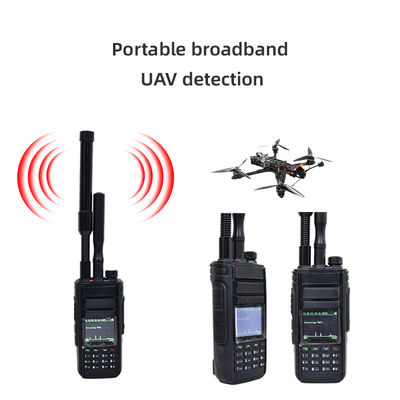

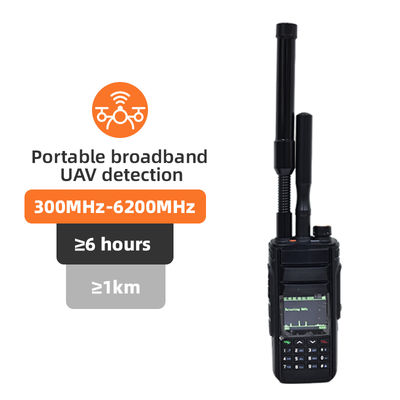

LDKW07 Portable Drone Detector — 300–6200 MHz FPV & DJI UAV Detection System

Product Overview

The LDKW07 Portable Broadband UAV Detection Equipment is a lightweight, highly integrated drone detector built for rapid, reliable detection of mainstream rotary-wing drones (DJI, Docom) and DIY FPV drones. It passively scans a very wide frequency range (300 MHz–6200 MHz), supports multi-channel simultaneous scanning with dual antennas, and delivers fast detection, high sensitivity, long range, and a low false-alarm rate — all in a compact, easy-to-use package.

Key Benefits (Why choose LDKW07)

  • Wideband coverage: detects both OFDM HD image transmission and FM analog FPV transmissions across 300–6200 MHz.

  • Long detection distance: reliably detects drones at ≥1 km under typical conditions.

  • High sensitivity: detection sensitivity better than -96 dBm for weak signals.

  • Portable and durable: light (≈500 g) with removable lithium battery and type-C charging — 6+ hours runtime per battery.

  • Fast, flexible scanning: default scanning, key frequency band scanning, and user-defined feature library.

  • Low false alarms: multi-channel scanning + dual antenna design reduces false positives.

  • Easy records & export: alarm log (≥500 records) and firmware/feature updates via MicroUSB.

  • Multi-language UI: English, Chinese, Russian.

Main Functions & Features

  • Passive UAV detection: Identifies OFDM HD image transmission used by mainstream consumer drones and FM analog image transmission used by many FPV systems.

  • Multi-mode scanning: Default mode, key band scan, and custom feature-library scanning (user can modify/add via USB).

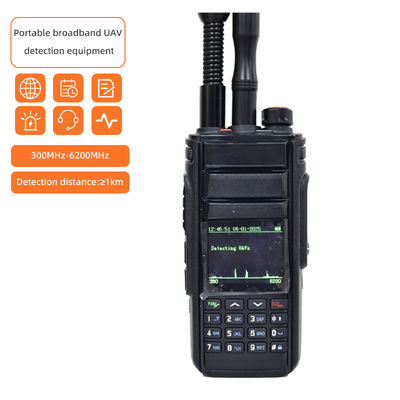

  • Real-time spectrum display: Visualize signal strength across 300–6200 MHz.

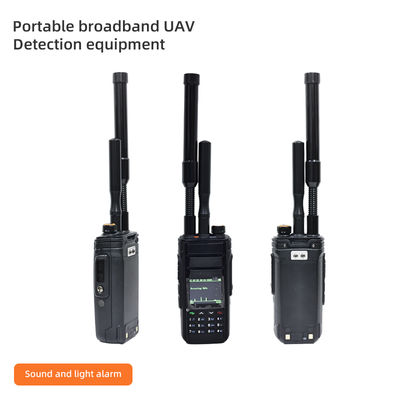

  • Alarm methods: Headphone alarm, external sound & light alarm; headphone audio output supported.

  • Data & upgrade: Alarm log export and firmware upgrade via MicroUSB.

  • Field usability: Low power consumption design, compact dimensions, and easy operation for security teams or mobile patrols.

Technical Specifications

Item Description
Model LDKW07
Receiving Frequency Range 300 MHz – 6200 MHz
Detectable Signal Types OFDM HD image transmission and FM analog image transmission (FPV)
Detection Distance ≥ 1 km (typical conditions)
Detection Sensitivity Better than -96 dBm
Alarm Modes Headphones, sound and light alarm
Alarm Log Capacity ≥ 500 alarm records
Upgrade / Data Export Interface MicroUSB
Power Supply Removable lithium battery (Type-C charging)
Battery Life ≥ 6 hours (single battery)
Display Interface Built-in screen, supports English/Chinese/Russian
Operation Modes Default scan / Key frequency scan / Custom frequency scan
Dimensions (Host) 135 × 60 × 35 mm (excluding antenna)
Weight ≈ 500 g (including one battery)
Working Temperature -10°C to +55°C
Storage Temperature -20°C to +60°C
Humidity ≤ 90% RH (non-condensing)
 LDKW07 Lightweight Portable Drone Detector with High Sensitivity and Long Battery Life for UAV Detection 0
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory located in Dongguan City, China.
Q: What shipping methods are available?
A: We support all major shipping methods including DHL, UPS, TNT, FedEx, and sea shipment.
Q: What is the typical delivery time?
A: Normal orders ship within 5-7 working days. Bulk orders may require additional time.
Q: Can I customize labels and logos?
A: Yes, we support custom labeling and branding.
Q: What is your minimum order quantity?
A: MOQ ranges from 1 to 20 sets depending on your requirements.
Q: What if I receive a defective product?
A: We maintain strict quality control but will address any issues promptly with replacements or compensation.
