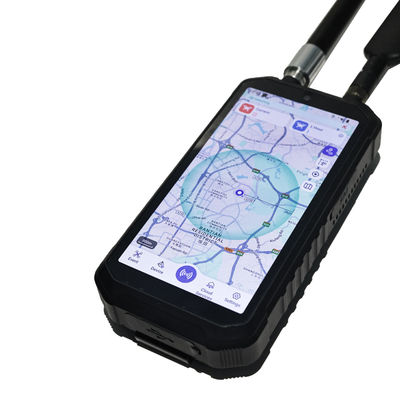

Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments

  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
Nguồn gốc Quảng Đông, Trung Quốc
Hàng hiệu LDSK
Số mô hình LDSKL03
Số lượng đặt hàng tối thiểu 1
Giá bán $4100
Thời gian giao hàng 1 ngày làm việc
Điều khoản thanh toán D/A, D/P, T/T, Liên minh phương Tây, Moneygram, PayPal
Khả năng cung cấp 5000pcs mỗi tháng

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Dải tần số phát hiện 300 MHz～6GHz Bán kính phát hiện 3km (Môi trường đô thị)
Thời gian phản hồi 5s Thời gian của sức chịu đựng 3 ~ 4h
Điểm nổi bật Thiết bị phát hiện máy bay không người lái 6000 MHz, thiết bị phát hiện máy bay không người lái có t
Làm nổi bật

CRPC+ Technology Handheld Drone Detector

,

RID Monitoring UAV Detector

,

Passive Detection Portable Drone Detection Device
Bạn có thể đánh dấu vào các sản phẩm bạn cần và liên lạc với chúng tôi trong bảng tin.
Để lại lời nhắn
Mô tả sản phẩm

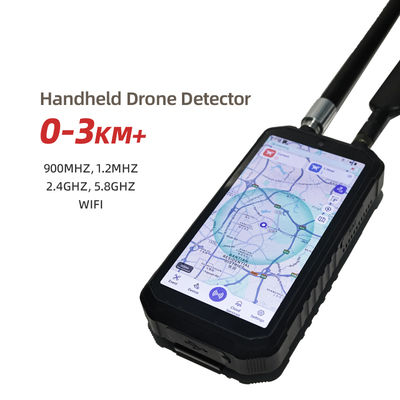

3KM Detection Handheld Drone Detection & Positioning System 300MHz–6GHz Full-Band Coverage
Product Description

The Handheld Drone Detection and Positioning Equipment (LDSKL03) uses Cognitive Radio Protocol Cracking+ message-level decoding (CRPC+) technology and RID monitoring and identification technologies to detect, accurately identify, locate, and track low-altitude drones. The system is designed with high integration, compact size, and lightweight, primarily used for portable low-altitude security defense.



Cognitive Radio Protocol Cracking Technology (CRPC 2.0) is the fourth generation of drone defense technology. This technology uses an antenna array to monitor the radio environment within the defense area, continuously collecting radio signals 24 hours a day. The collected signals are transmitted to the signal processing unit, where drone signals are precisely demodulated and cracked. The analyzed drone signals are then sent to the data server via the network, where the data server manages the received drone signals uniformly

Applications include:
  • Event security and public safety
  • Border and perimeter monitoring
  • Airport and restricted area protection
  • Industrial facility security patrols
Product Specifications

Working Principle

Passive detection, does not emit any electromagnetic signals

Detection Bands

900MHz, 1.2MHz, 2.4GHz, 5.8GHz, WiFi；

Sensitivity

≤-100dBm

Detection Distance

0~3km+ (Different exist due to different environments and drone type)

Response Time

≤5s

Detection Quantity

≥10 Drones (Simultaneous)

Number of Drone Trajectories

≥10 Drones (Simultaneous)

Position Accuracy

≤3m (Available for the drones can be decoded)

Drone Library (Geo-Locaation)

DJI OC protocol models, Mavlink protocol, Parrot, TBS CrossFire and other brands

Dynamic Detection Movement Speed

≥60km/h  (Available for the drones can be decoded)

Screen Size

6.0 Inch

Battery Capacity

12000mAh

Endurance

3～4h

External Interface

Type-C, SMA antenna connector (external screw and internal hole)*2, 3.5mm audio output connector*1, SIM card*1

Charging Power

DC9V, 2A

Charging Time

≤3h(0%-100%)

Power Consumption

≤15W

Size

177mm * 89mm * 29.5mm(±2mm)

Weight

≤580g(±0.05kg,without antenna)

≤46g per antenna

Operation Temperature

-20℃ to +50℃

Storage Environment

15～25℃

RH25～65%

IP Level

IP54
Product Images

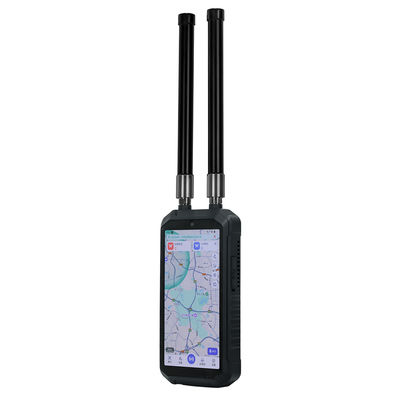

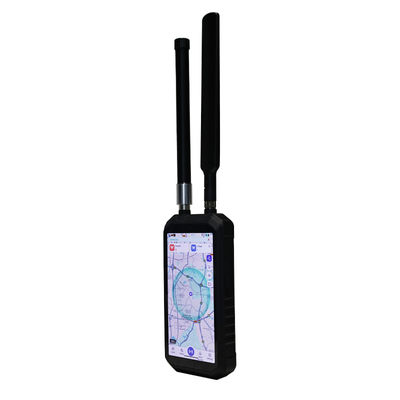

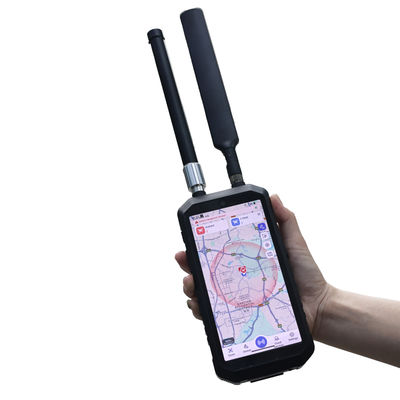

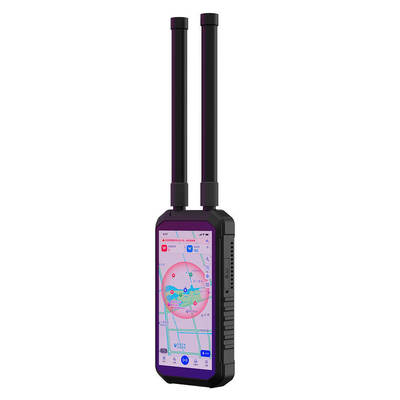

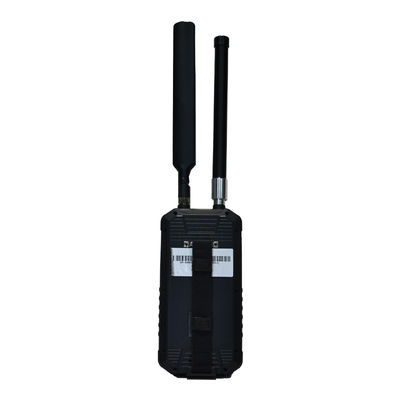

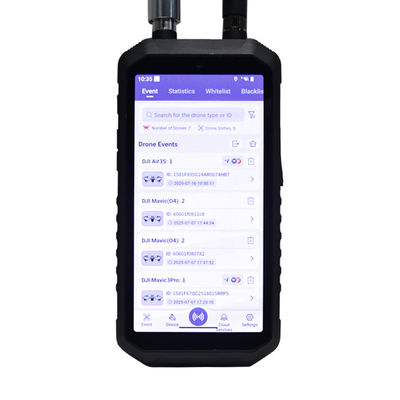

Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments 0
