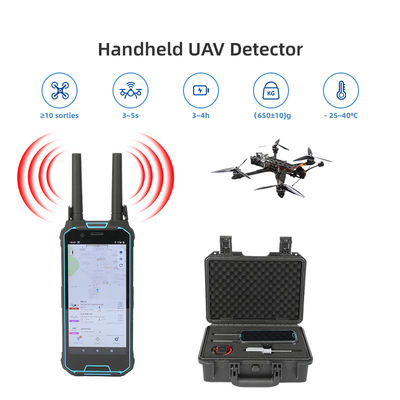

The LDSKL02 Portable UAV Detection and Positioning Device is an advanced, single-operator handheld solution that integrates spectrum detection, protocol analysis, Remote ID identification, and trajectory tracking in one compact system. It provides real-time detection, early warning, and precise positioning of both UAVs and their pilots, making it ideal for security, patrol, and critical infrastructure protection.

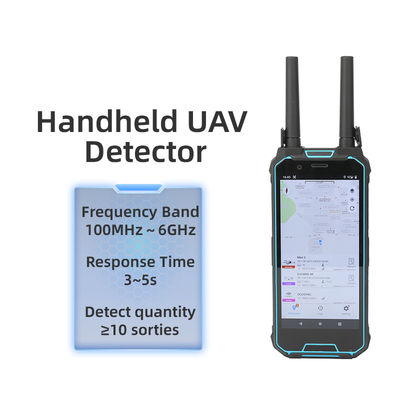

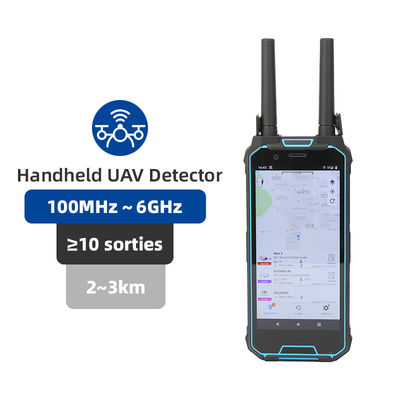

With a detection frequency range of 100MHz -6GHz, the TTSKL02 can identify common drone models such as DJI, Dow Tong, FPV racing drones, WiFi-based UAVs, and more. It supports passive detection to avoid electromagnetic interference, offers 1.5 -2km detection in urban areas (up to 3km in open areas), and delivers accurate UAV/pilot navigation via an integrated map interface.

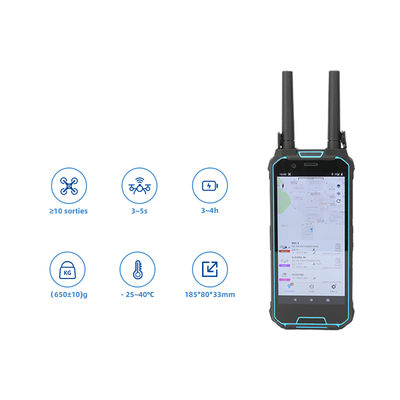

Designed for field portability, it weighs only 650g, features a 6-inch touch screen, supports 3 -4 hours of operation on a single charge, and provides visual flight data analysis for post-event investigation. Optional network intercom enables device-to-device communication when connected to a wireless network.
| Category | Parameter | Specification | Remarks |
|---|---|---|---|
| Performance | Detection Frequency Band | 100MHz-6GHz | - |
| Detection Radius | 1.5-2km (urban) / 2-3km (open) | - | |
| Response Time | 3-5s | - | |
| Positioning Range | 1-2km (urban) / 2-3km (open) | - | |
| Simultaneous Detections | ≥10 UAVs | - | |
| Endurance Time | 3-4h | - | |
| Mechanical | Host Dimensions | 185×80×33mm ±5mm | - |
| Mechanical | Weight | 650±10g | Without antenna |
| Electrical | Battery Capacity | 8000mAh | Built-in lithium battery |
| Electrical | Operating Time | 4-6h | Screen brightness 20%, 25℃ |
| Electrical | Charging Time | ~3h | With original charger |
| Environmental | Operating Temp | -25℃ to +40℃ | - |
| Environmental | Storage Temp | -35℃ to +40℃ | - |
| Display | Screen Size | 6 inches | - |
| Display | Resolution | 1080×2160 pixels | - |
| Storage | Internal Storage | 8GB | - |
| Storage | Memory | 256GB | - |
| System | OS | Android 12 | - |
| System | Network Support | Online & offline modes | - |
